Antistatic FIBCs ( Bigbag )

It is our priority to prevent any work accident which the accumulation and discharge of the static energy may cause. Our industry has classified bigbag types in 4 different groups according to their static characteristics in respect to regulation IEC 61340-4-4 Ed2. We produce all products included in these 4 groups with certificates given by test houses recognized by the industry.



FIBC – Type A

Standard bigbag- No static protection
Safe way of usage: Used for the transportation of non flammable or non explosive goods. There should be no flammable or explosive solvent or gas in the environment. .
Never Use: For the transportation of flammable or explosive goods. If there exists any flammable or explosive gas in the environment.



FIBC – Type B
Standart bigbag- Bigbag type produced with special fabric with low tension value.
Safe way of usage: Used for the transportation of dry and flammable products in powder shape. Manufactured either with or without liner. There should be no flammable or explosive solvent or gas in the environment.
Never Use: If there exists any flammable or explosive gas in the environment.



FIBC- Type C

Conductive bigbag- Big bag manufactured with a body fabric woven with conductive yarn in uninterrupted contact with each other and with a surface tension lower than 10^7 Ohm’ and therefore designed to ground the energy safely.

Safe way of usage: Used for flammable products in powder form. Should be used when there exists flammable and explosive solvents and gases in the environment.

Never Use: If the grounding mechanism is damaged or missing.



FIBC – Type D
Chromiq bigbag- Bigbag which diffuses the energy that occurs during filling or discharging safely to the atmosphere. Type D bigbags do not need grounding unit to operate and are designed to reduce the serious risks that the operator’s negligence of grounding or misapplication may cause to zero.
Safe way of usage: : Used for flammable products in powder form. Should be used when there exists flammable and explosive solvents and gases in the environment.
Never Use: If the surface of the bigbag is covered with any conductive material such as water or oil.



Please feel free to adress your questions to tech@cesur.com Our technical team will be more than happy to supply you with the proper antistatic bigbag design and answers to your related questions.

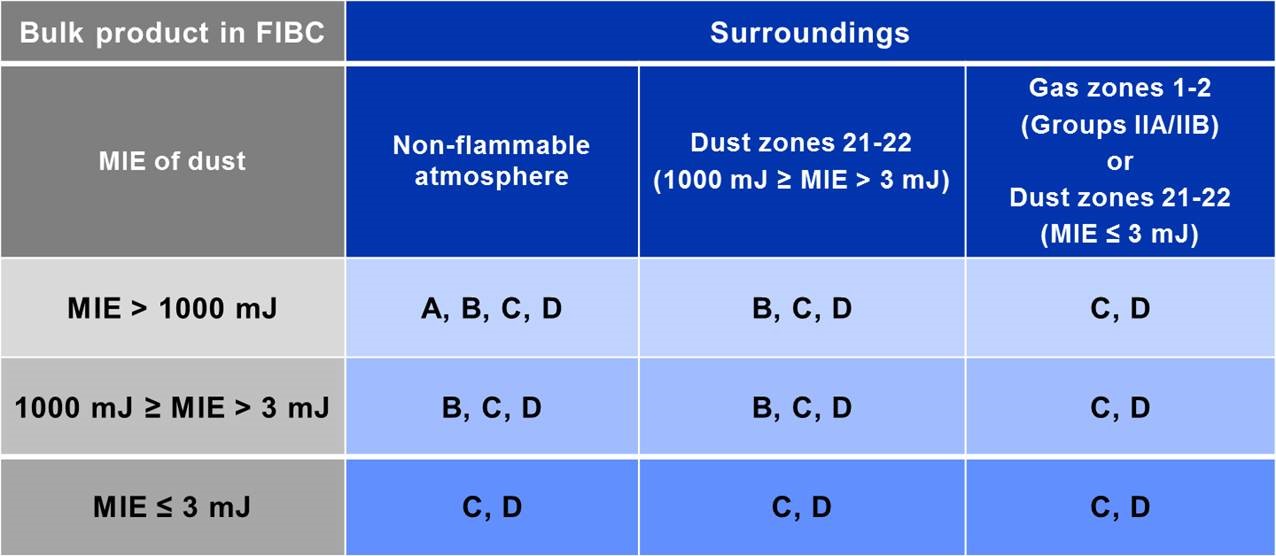

Please check below the table of regulation IEC 61340-4-4 Ed2 which shows the types of bigbags to be used for given product types and in given surroundings :







( Tote - Super Sack - Jumbo Sack - Bigbag )
